Lyle Archtop Restoration Log: Part 2 - The Ship in a Bottle
- Apr 4
- 1 min read
In the previous entry, I outlined the plan to restore and upgrade the electronics of my Lyle Archtop. I also posed a structural question: With no back access panel, how does one remove the entire electronic harness through the F-holes, rewire it, and—crucially—install it back into the sealed body without losing a component inside?
—--------------------------------------
Restoration plan:
1. Control Layout Correction
I will revert the wiring to the standard Gibson layout, bringing the Neck pickup controls closer to the hand to improve playability.
2. Complete Rewiring
I will replace all the old, thin wires with modern braided shield wire to address the noise.
Part 1 - The Patient and the Plan
Link: https://x.gd/0CQOG
----------------------------
The answer lies in preparation before a single wire is cut.
The "Fishing Line" Method

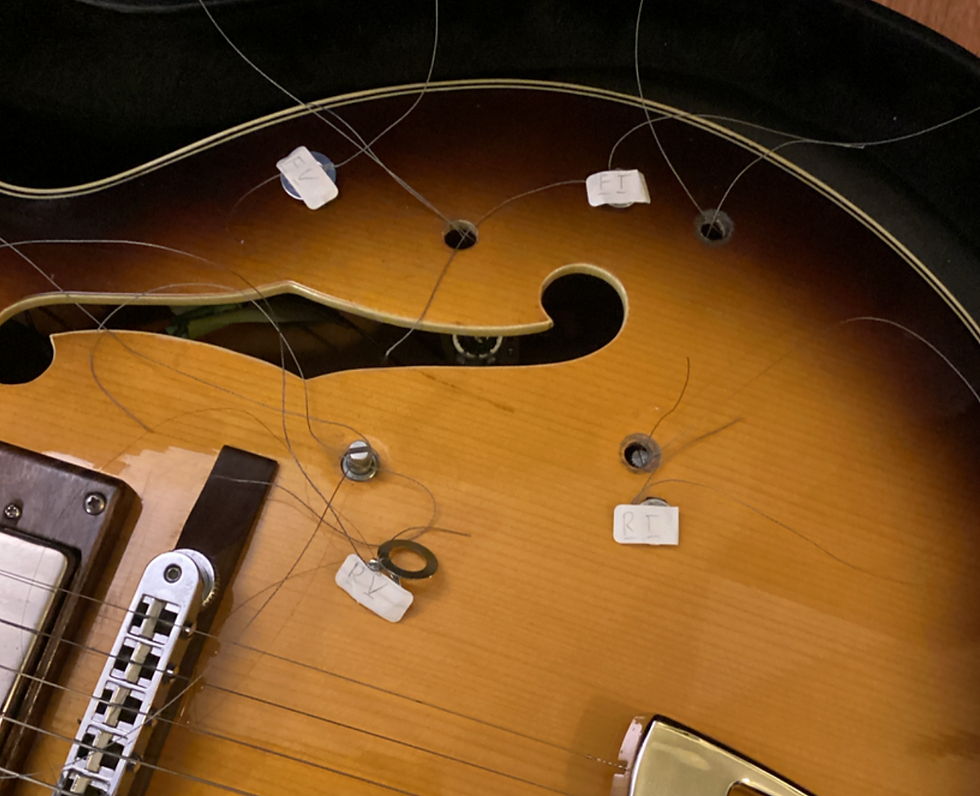

The solution is a technique often used by luthiers for hollow-body instruments. Before removing the old components, I tied strong guidelines (fishing line or dental floss) to the shafts of the potentiometers, the switch, and the output jack.
By pushing the components into the body and pulling the harness out through the F-hole, I leave these guide lines threading through the mounting holes. When the new harness is ready, I will tie these lines to the new components and pull them back into position from the outside, like a ship in a bottle.
The Surgery
With the retrieval plan in place, I removed the old harness. To ensure the new layout would fit perfectly inside the guitar, I created a cardboard template tracing the exact positions of the holes.
