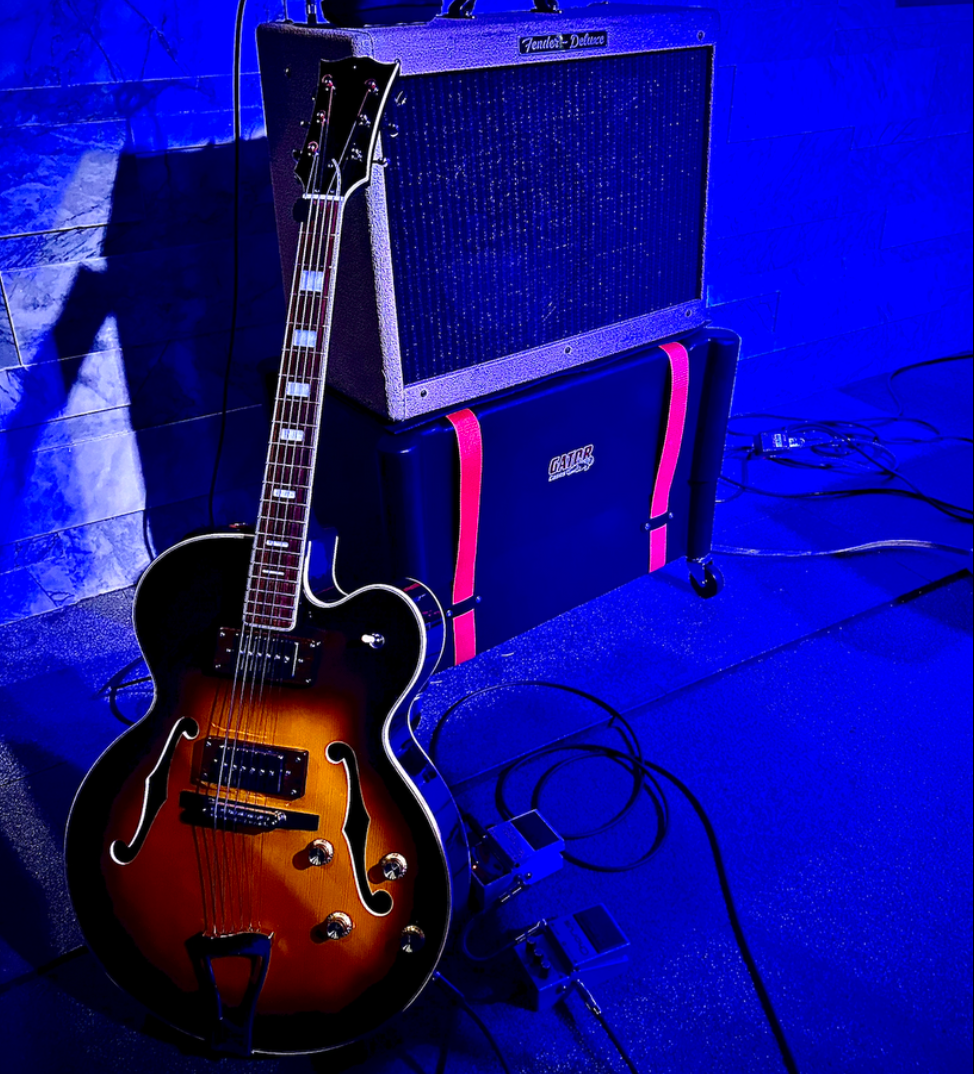

Lyle Archtop Restoration Log: Part 3 (Final) - The Ghost in the Machine & The Revival

(Link to Part 1) https://x.gd/0CQOG

(Link to Part 2) https://x.gd/51Kn7

In the previous entry, the harness was built, and the components were connected, but I was met with silence from the bridge pickup. I tested the signal path with a multimeter, but the initial diagnosis showed no obvious breaks. In this final chapter, I will document the journey from that troubleshooting deadlock to the revived tone you hear in the video above.

Restoration Plan Recap:

1. Control Layout Correction: Reverting to the standard Gibson layout for better playability.

2. Complete Rewiring: Upgrading to modern braided shield wire to address the noise floor.

 ---------------------------------------

The Problem: Silence

In a way, total silence is the "best" kind of problem. The worst scenario is intermittent sound or "tone suck"—problems that are subtle enough to be missed due to fatigue or deadline pressure, only to haunt you later. Complete silence forces you to stop and think.

With this mindset, I took out my multimeter and methodically tested continuity across the circuit.

• Grounding: Connected.

• Controls to PU Selector: Connected.

• Selector to Output Jack: Connected (The Neck PU was already working, confirming this path).

• Cold Solder Joints? I reflowed the solder on suspicious points. No change.

• Dead Pickup? Unlikely, as it was producing sound before the modification.

• Short Circuit? Suspecting a short within the shielded wire, I trimmed and re-stripped the pickup leads. Still, no change.

I used the working Neck PU as a reference and confirmed the Bridge PU was wired identically. Logically, it should work. But it didn't.

The Realization

Then, a thought occurred to me. "I started this project because the previous owner had already modified the layout. Why should I assume the wiring color codes follow a standard logic?"
